Waveform Unit Switching

Users can switch the unit to time, frequency or sampling site.

See below image:

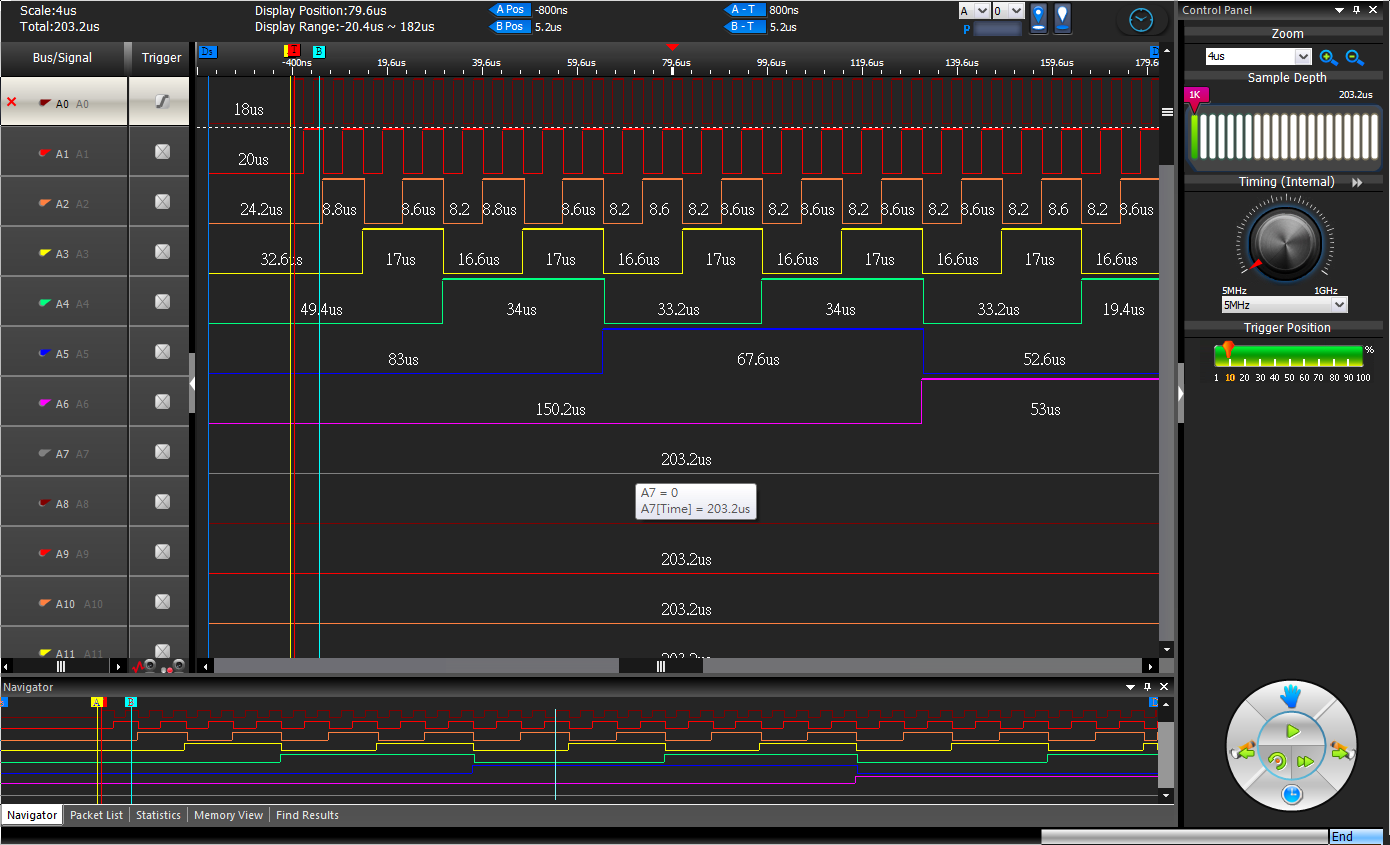

Displayed in time

Figure 1: Displayed in time

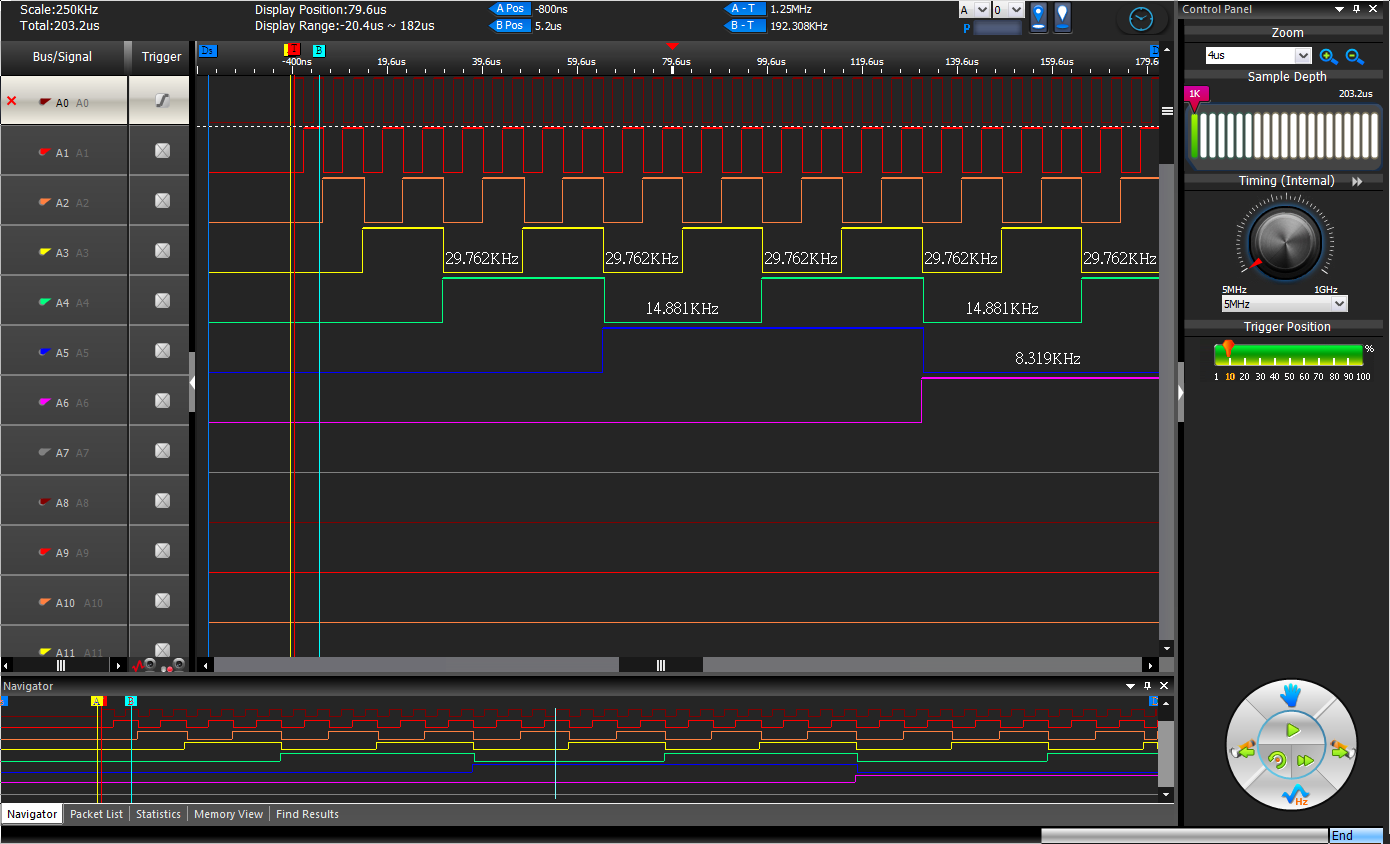

Displayed in frequency

Figure 2: Displayed in frequency



Displayed in sampling site

Figure 3: Displayed in sampling site

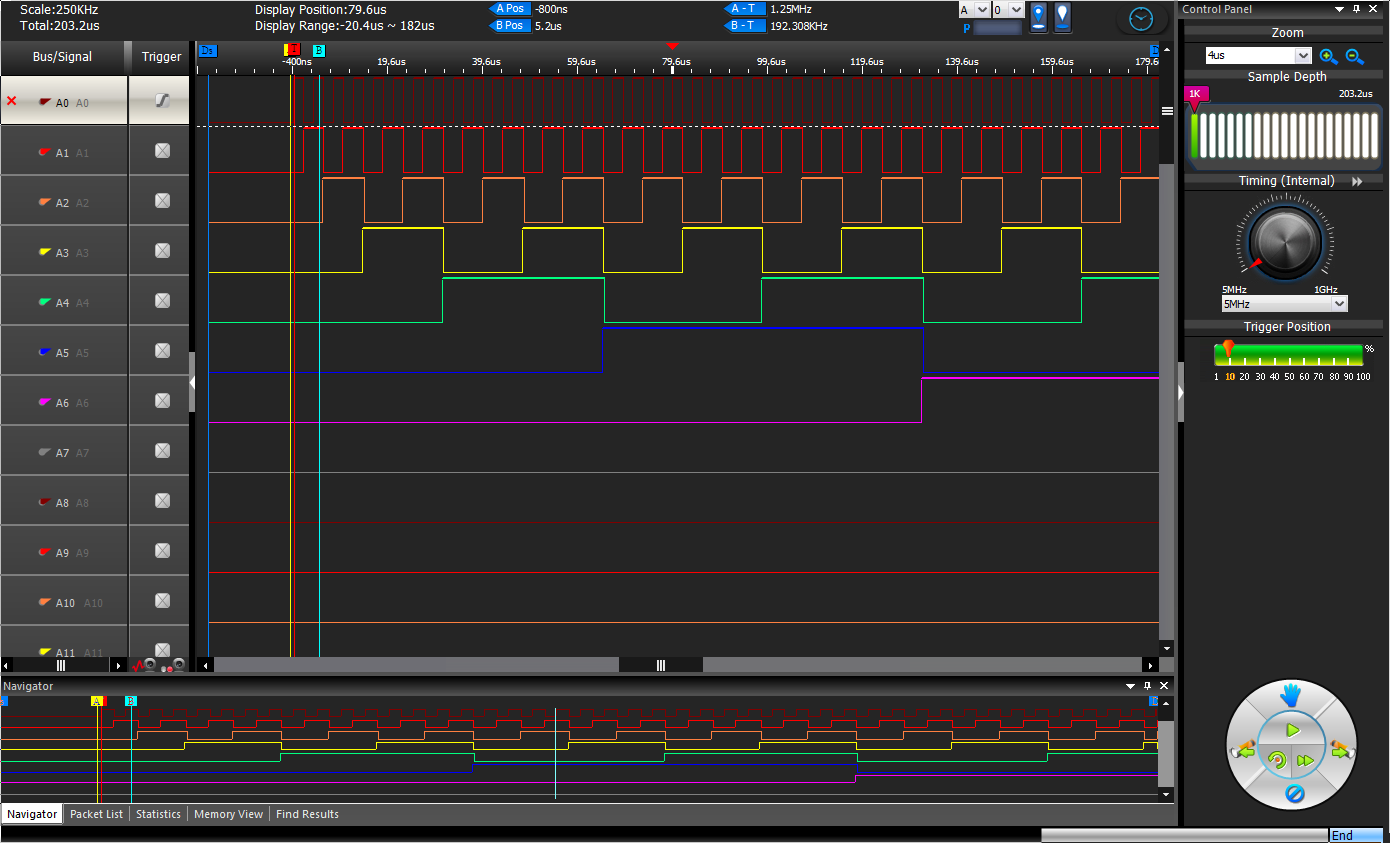

No unit display

Figure 4:No unit display
