Active Probe

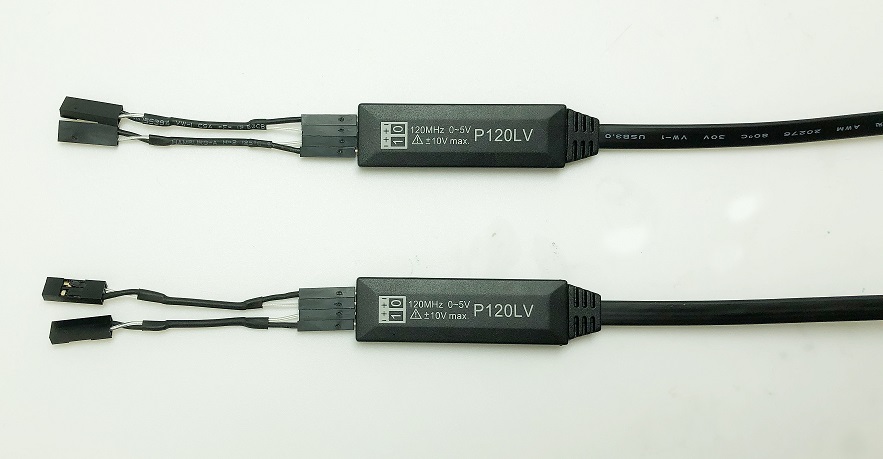

P120LV

The compact design with small, high-impedance active probes designed to meet today’s increasing demand for measurements on a variety of test points. With low input capacitance and high input resistance, circuit loading is minimized. The probes can be used with a variety of Zeroplus logic analyzers.


P300ST

The compact design with small, high-impedance active probes designed to meet today’s increasing demand for measurements on a variety of test points. With low input capacitance and high input resistance, circuit loading is minimized. The probes can be used with a variety of Zeroplus logic analyzers.





DSO Module

DSO Module

(Video Intro –How to measure the electrical parameters and communication protocol of USB PD device) As the name implies, a mixed signal oscilloscope (MSO), or a digital signal oscilloscope module (DSO Module), can work with LAP-C series to measure both digital and analog signals. Meanwhile, packet data can be viewed at the same time. With DSO plus LAP-C, you may keep the PC-based logic analyzer in compact and lightweight features, while performing more signal measurement!





Ethernet Module

Ethernet Module

(Video introduction - How to connect to the Ethernet Module and measure and decode the MII protocol) With Zeroplus logic analyzer, it can captures and measures the Ethernet signal. The Zeroplus logic analyzer can decode and analyze the packet information in the Ethernet.





USB 2.0 Capture Board

USB 2.0 Capture Board for LAP-C Pro

‧Support the Data Format, the users can vary the displayed Ary of the Data as their requirements. ‧Packet Optimization: It not only can be used to select the Items (Packet#, Name and TimeStamp) to be displayed, but also can be used to support the Data Combination and the Packet Format Filter functions according to the viewing Mode. So with the help of the function, the speed of analyzing the signal can be improved. ‧The USB has three Decoding Modes, namely, USB1.0 (LOW), USB 1.1 (FULL) and USB 2.0(HIGH). ‧The USB Transmission Protocol includes the different Packet Formats, so it can be used to select a part of data and analyze the data fast. ‧The USB can be used to improve the working efficiency for users in the process of analyzing the signal, matching with the ZEROPLUS Logic Analyzer.


USB 2.0 Capture Board for LAP-C

‧Support the Data Format, the users can vary the displayed Ary of the Data as their requirements. ‧Packet Optimization: It not only can be used to select the Items (Packet#, Name and TimeStamp) to be displayed, but also can be used to support the Data Combination and the Packet Format Filter functions according to the viewing Mode. So with the help of the function, the speed of analyzing the signal can be improved. ‧The USB has three Decoding Modes, namely, USB1.0 (LOW), USB 1.1 (FULL) and USB 2.0(HIGH). ‧The USB Transmission Protocol includes the different Packet Formats, so it can be used to select a part of data and analyze the data fast. ‧The USB can be used to improve the working efficiency for users in the process of analyzing the signal, matching with the ZEROPLUS Logic Analyzer.





Signal Generator Module

Signal Generator Module

The signal source module stably sends out the 204MHz/1.8V reference signal and uses the P300ST and P200EM active probes to perform trigger level correction.





Probe

20 pieces/package

Wider contact surface and slip-resistant design. For Series LAP-C、Series LAP-B


36 pieces/package

Wider contact surface and slip-resistant design. For Series LAP-C、Series LAP-B





Testing Cable

16 channel testing cable package

16CH (25cm/40cm ) For Series LAP-C、Series LAP-B


32 channel testing cable package

32CH( 25cm/40cm ) For Series LAP-C、Series LAP-B


I2C-SPI Control Center testing cable

12Pin & 10Pin size: 25 cm For I2C-SPI Control Center

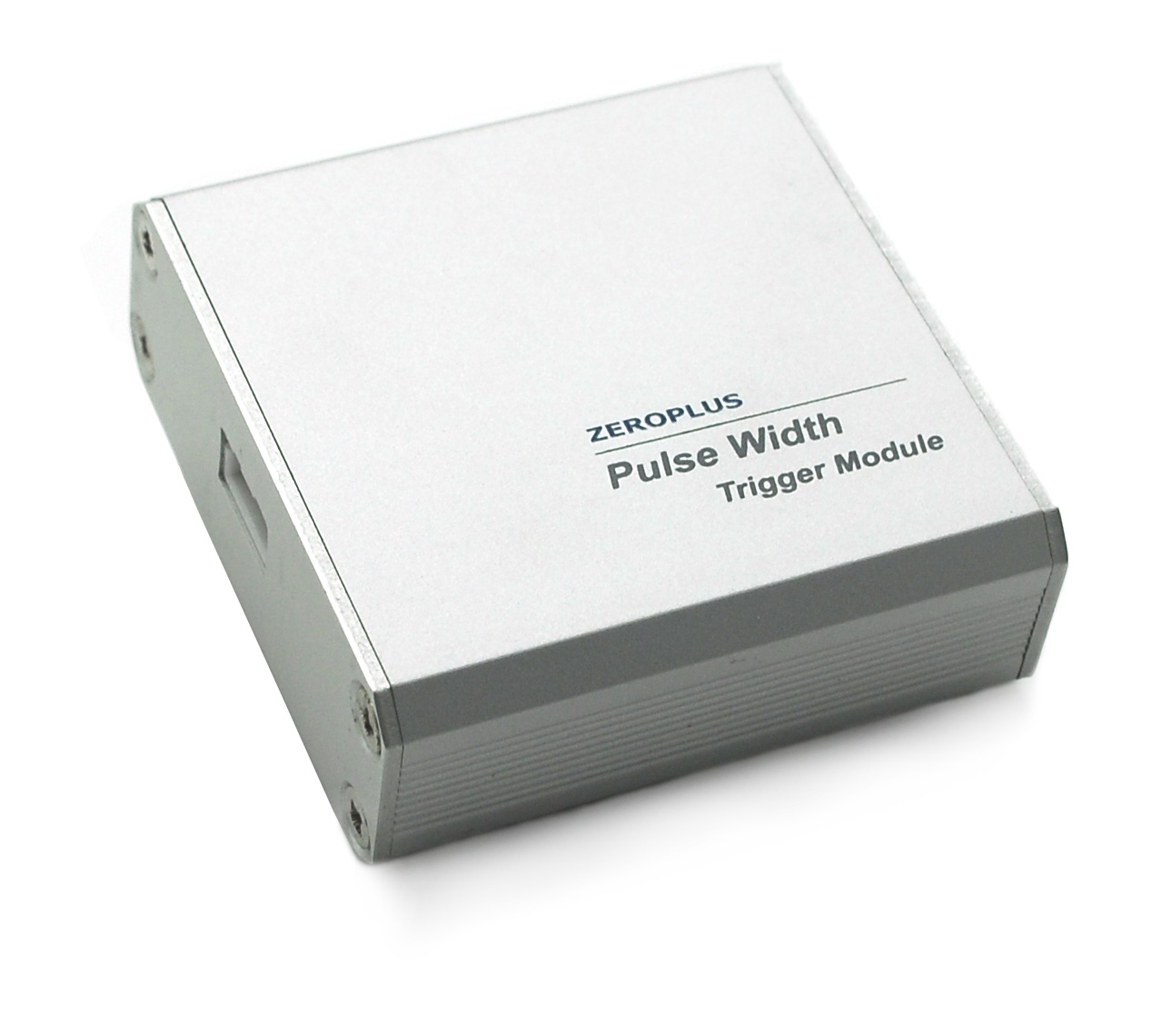

Pulse Width Trigger Module – 3 pin testing cable

3pin(2pin + 1pin Retention) for Pulse Width Trigger Module


Pulse Width Trigger Module – 7 pin testing cable

7pin(5pin + 1pin +1pin) for Pulse Width Trigger Module





Carry Bag

LAP-C Carry Bag

Size:20cm x 16cm x 4.5cm color:blue For LAP-C Series





Adapter

PCI Adapter

size:8.5cm * 5.1cm When measuring the PCI signal, you can use the PCI Adapter to get the best measurement and save your time.


MINI SD

1. Specially design for support Mini SD signal measurement. 2. Support SD card Spec V1.1 3. You can use it to get the best measurement result and save your time. 4. Size:6.3(L) cm x 3.1(W) cm x 1(H) cm


MICRO SD

1. Specially design for support MICRO SD signal measurement. 2. Support SD card Spec V1.1 3. You can use it to get the best measurement result and save your time. 4. Size:5 (W) cm x 2.2 (D) cm x 1.2(H)cm


32pin DIP socket adapter

size:5.6cm * 5cm


40pin DIP socket adapter

size:6.6cm * 5cm


Buffer Board

Usage is comprised of impedance un-matching happens (the DUT of the voltage drop after connecting to logic analyzer). The client signal pins can be connected to buffer board in order of "IN pins", then the signals will be sent to the LA through the corresponding “OUT pins”. Connection through the buffer board helps enhance about 1MΩ resistance for each channel.





Cable

USB Cable - A/B

USB Cable A type male to B type male 100cm for LAP-C series, LAP-B series, Protocol Simulator Board, USB 2.0 Protocol Analyzer


BNC Cable

For Series LAP-B connector type : BNC F TO F Size:100 cm ± 20mm


AC Power Cable

Size:183 cm ± 5cm For Series LAP-B


USB Cable - A/Mini

USB Cable A type male to Mini type male 100cm for I2C-SPI Contorl Center





Protocol Simulator Board

Protocol Simulator Board 1

size:7(W) cm x 9.7 (D)cm x 2.5(H)cm


Protocol Simulator Board 2

size:7(W) cm x 9.7 (D)cm x 2.5(H)cm
