MI007: 60 MHz示波器探頭x1/x10 |
．Bandwidth: 60 MHz ．Attenuation: x1 / x10 ．Input resistance: x1: 1 MΩ / x10: 10 MΩ ．Input capacitance: x1: 46 pF plus scope / x10: ≈15 pF ．Maximum working voltage: 600 V DC incl AC pk |
|
 |

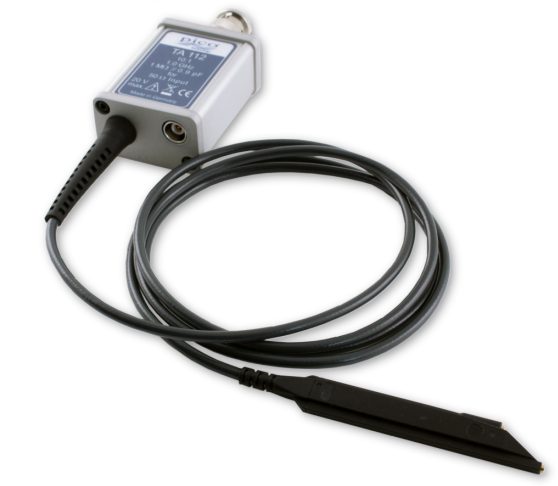

TA112: 1 GHz示波器探頭x1/x10 |
．Bandwidth: 1 GHz ．Attenuation: x10 / x100 ．Input impedance: 1 MΩ ．Input capacitance: 0.9 pF ．Working voltage: 20 V ．Cable length:1.3M |
|
 |
TA041: 25 MHz示波器探頭x10 / x100 |
．Bandwidth: 25 MHz ．Attenuation: x10 / x100 ．Differential voltage range: ±70 V / ±700 V ．Common mode voltage range: ±1400 V ．Input impedance: 4 MΩ / 5.5 pF |
|
 |
TA057: 60 MHz示波器探頭x1/x10 |
．Bandwidth: 25 MHz ．Attenuation: x20 / x200 ．Differential voltage range: ±140 V / ±1400 V ．Common mode voltage range: ±1400 V ．Input impedance: 4 MΩ / 5.5 pF |
|
 |
TA058: 50 MHz示波器探頭x10 |
．Bandwidth: 50 MHz ．Attenuation: x10 ．Differential voltage range: ±70 V ．Common mode voltage range: ±700 V ．Input impedance: 1.6 MΩ / 7 pF |
|
 |
TA044: 70 MHz示波器探頭x100 / x1000 |
．Bandwidth: 70 MHz ．Attenuation: x100 / x1000 ．Differential voltage range: ±700 V / ±7000 V ．Common mode voltage range: ±7000 V ．Input impedance: 10 MΩ / 10 pF |
|
|
TA043: 100 MHz示波器探頭x10 / x100 |
．Bandwidth: 100 MHz ．Attenuation: x10 / X100 ．Differential voltage range: ±70 V / ±700 V ．Common mode voltage range: ±700 V ．Input impedance: 4 MΩ / 7 pF |
|
|
TA042: 100 MHz示波器探頭x100 / x1000 |
．Bandwidth: 100 MHz ．Attenuation: x100 / X1000 ．Differential voltage range: ±140 V / ±1400 V ．Common mode voltage range: ±1400 V ．Input impedance: 4 MΩ / 7 pF |
| |
|
|
