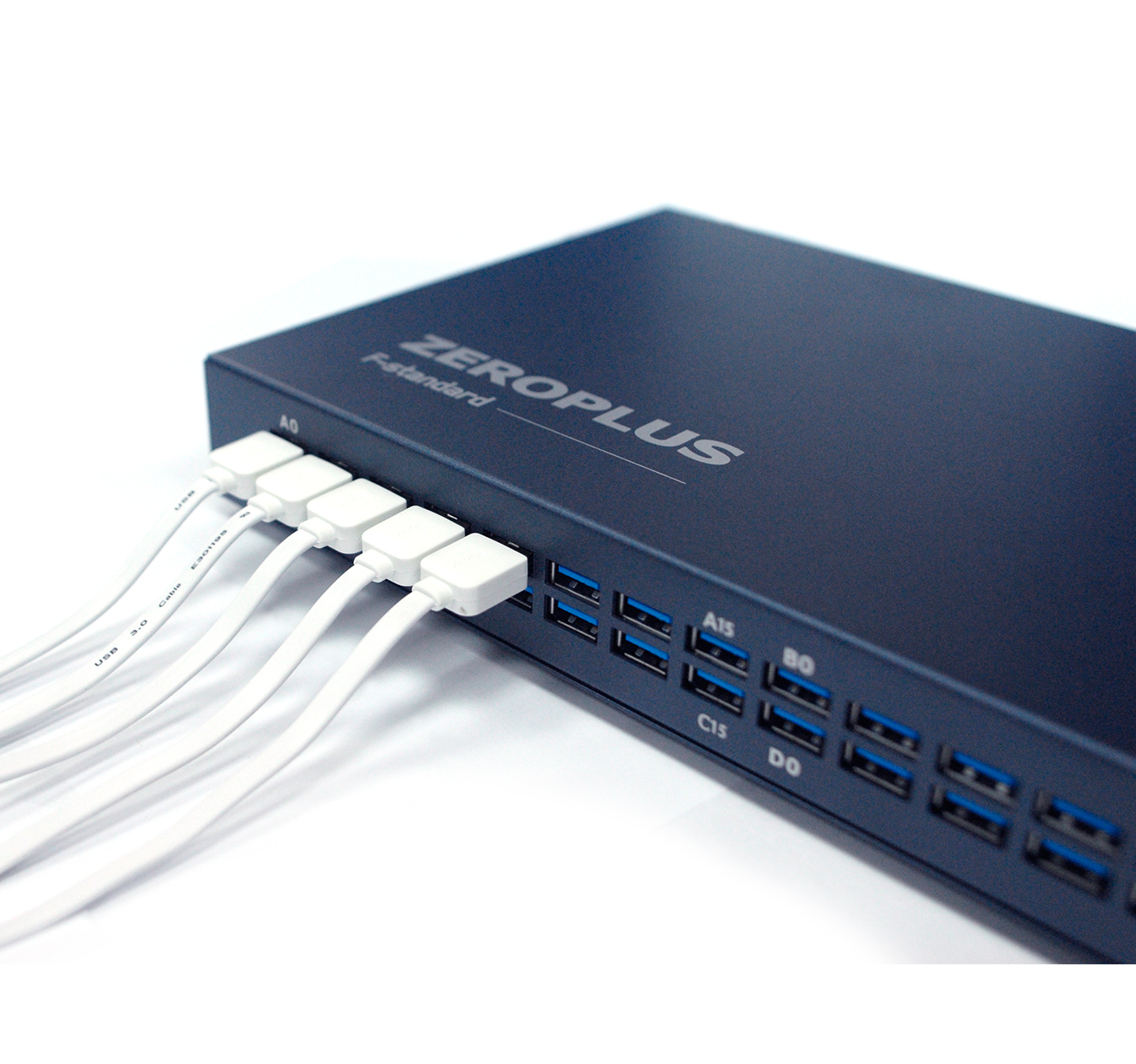

LAP-F1-40




User Manual     Software

General
Free
Protocols -

1-WIRE, CAN 2.0B, IRDA, 3-WIRE, JTAG 2.0, PS/2, I2C (EEPROM 24LCS61/24LCS62), SSI Interface, MANCHESTER, MILLER, SPI Compatible (Atmel Memory), I2C, UART (RS-232C/422/485), SPI, 7-SEGMENT LED, USB 1.1, LCD1602, DIGITAL LOGIC, ARITHMETICAL LOGIC, MICROWIRE, I2C (EEPROM 24L), UP DOWN COUNTER, MICROWIRE (EEPROM 93C), MCU-51 DECODE, General Free Protocols
N/A - USB 2.0

Inquiry



Specifications
Support LabVIEW
  LabVIEW for LAP-F1 Download

How to logic analyzer measurement on LabVIEW :
https://www.youtube.com/watch?v=XCFB1xZMlyE

Lossless Long Time Record example


Certifications
  FCC / CE

Power supply
  AC (IN):100~240V, 50~60Hz
DC (OUT):9V / 5.55A

Phase error
  < 3 ns

Special software features
  .Zooming and panning
.Waveform and UI Customization
.State list and Waveform view
.Packet list
.Waveform Navigator
.Memory view
.Statistic
.File Comparison

Data transmission
  USB 3.0 (compatible with 2.0)

Operating system
  Windows (10 / 8.1 / 7 / XP / 2000)

Trigger
  .6 protocol triggers (hardware)(serial): I2C, I2S, SPI, SVID, UART(RS-232C/422/485), CAN 2.0B
.Trigger types: Pattern / Edge / Pulse-Width / Interval
.Trigger channels: 40
.Trigger delay: Yes
.Trigger levels: 256
.Trigger pass: 1-65535

Memory

Memory depth per channel (bits) / channels

4M / 40 ch
8M / 16 ch
16M / 8 ch
32M / 4 ch
64M / 2 ch
128M / 1 ch

64M / 40 ch
128M / 16 ch
256M / 8 ch
512M / 4 ch
1G / 2 ch
256M / 40 ch
512M / 16 ch
1G / 8 ch
512M / 40 ch
1G / 16 ch

Active probes / Signals
  P120LV
.DUT Bandwidth (Max.):120 MHz
.Channels (Max.):Data 64 ch
.Signal Type:Single-Ended Bus
.Input Impedance / Capacitance:190 Kohm ± 10% / 4.3 pF ±2 pF
.Bus Voltage: VIH:0.6V-5V
.Input DC Voltage (Max.): ± 10V


P200EM (4 ch + 1 ch (CLK))
.DUT Bandwidth (Max.):200 MHz
.Channels (Max.):Data 32 ch
.Signal Type:Single-Ended Bus
.Input Impedance / Capacitance:190 Kohm ± 10% / 4.3 pF ±2 pF
.Bus Voltage: VIH:0.6V-5V
.Input DC Voltage (Max.): ± 10V

Sampling rate
  .Internal (Timing)(Asynchronous): max. 1 GHz
.External (State)(Synchronous): max. 200 MHz (Dual-edge)
