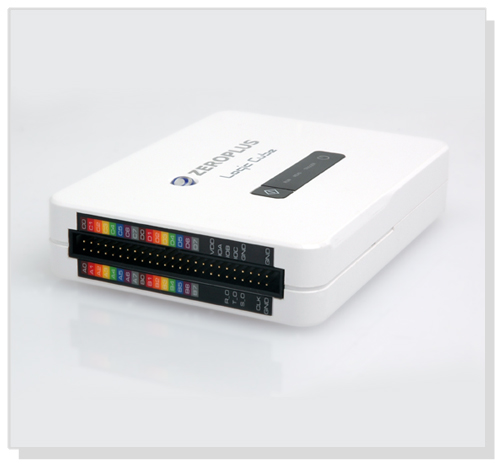

LAP-C(322000)

.Internal Clock (Timing Mode):100Hz~200MHz
.Memory:64Mbits
.Memory Depth(Per Channel):2Mbits
.Trigger Channel:32CH
.PC-Based interface
.Power:USB 1.1(2.0)
.Protocol Packet Trigger : parallel, serial
.Pulse Width Trigger Module : free

LAP-C(32128)

.Internal Clock (Timing Mode):100Hz~200MHz
.Memory:4Mbits
.Memory Depth(Per Channel):128Kbits
.Trigger Channel:32CH
.PC-Based Interface
.Power:USB 1.1(2.0)

LAP-C(162000)

.Internal Sampling Frequency: 100Hz~200MHz
.RAM Size: 64Mbits
.Memory Depth per Channel: 2Mbits
.Trigger Channel: 16CH
.PC-Based Interface
.Use USB1.1 (2.0) to supply power

LAP-C(16128)

.Internal Clock (Timing Mode):100Hz~200MHz
.Memory:4Mbits
.Memory Depth(Per Channel):128Kbits
.Trigger Channel:16CH
.PC-Based Interface
.Power:USB 1.1(2.0)

LAP-C(16064)

.Internal Clock (Timing Mode):100Hz~100MHz
.Memory:1Mbits
.Memory Depth(Per Channel):64Kbits
.Trigger Channel:16CH
.PC-Based Interface
.Power:USB 1.1(2.0)

LAP-C(16032)

.Internal Clock (Timing Mode):100Hz~100MHz
.Memory:512Kbits
.Memory Depth(Per Channel):32Kbits
.Trigger Channel:16CH
.PC-Based Interface
.Power:USB 1.1(2.0)

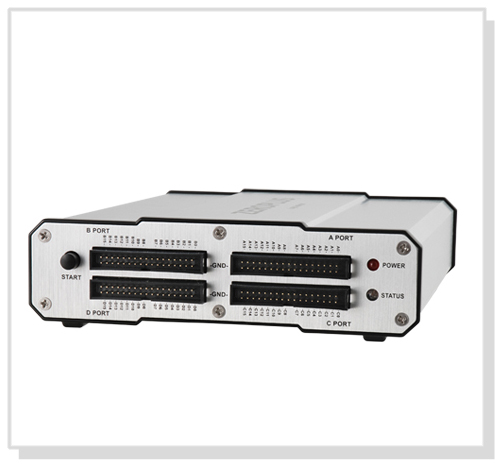

LAP-B(702000R)

Channel Mode:
Low Speed Mode(LSMC) / High Speed Mode (HSFC) / Memory-Fold Mode(MEMFOLD) / Ultra-High Speed Mode(4CH_2GHz)

Sampling Rate (Timing Measurement):
LSMC → 333MHz
HSFC → 500MHz/1GHz
MEMFOLD → 400MHz
4CH_2GHz → 2GHz

RAM Size: 140Mbits
Memory Depth (Per Channel): 2Mbits / 4Mbits / 8Mbits / 16Mbits / 32Mbits / 64Mbits / 128Mbits
Trigger Channel: 70 CH / 32 CH / 16 CH / 8 CH / 4 CH / 2 CH / 1 CH
Compression of Data: Max. 2^32 times
Hardware Protocol trigger: YES
Trigger Level: MAX.256 Levels
Protocol Packet Trigger: YES

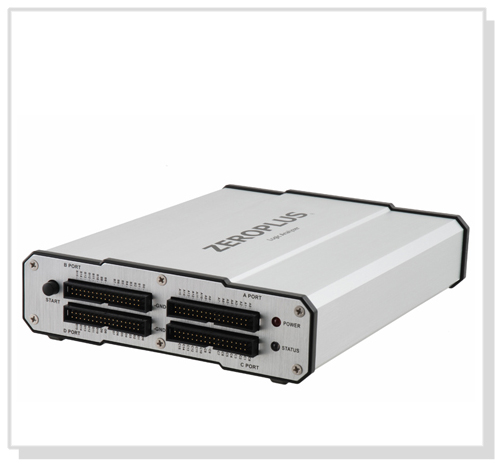

LAP-B(702000X)

Channel Mode: 70CH/32CH/16CH
Sampling Rate (Timing Measurement):
100Hz~333MHz/100MHz~500MHz/200MHz~1GHz
RAM Size: 140Mbits
Memory Depth (Per Channel): 2Mbits/4Mbits/8Mbits
Trigger Channel: 64CH/32CH/16CH
Compression of Data: Max. 2Mbits x 4G
Trigger Level: 16 Levels
Protocol Packet Trigger: YES








General Free Protocols

General Free Protocols

Automotive

CAN 2.0B DSI Bus FlexRay 2.1A LIN 2.1
MVB WTB

PC System

AMD_SVI2 DDC EDID GPIB FWH
Low Pin Count LPC-SERIRQ LPT PCI
PECI PS/2 Serial GPIO IBPI SVID
USB 1.1 USB 2.0

IC Interface

BDM HPI 1-WIRE JTAG 2.0
MCU-51 DECODE 3-WIRE I2C MDDI
MICROWIRE MIPI DSI SPI SLE4442
SSI Interface SPI PLUS ST7669 UART(RS-232C/422/485)
1-Wire(Advanced) Serial Wire Debug(SWD)

Digital Audio

AC97 AES_EBU DSA Interface DP AUX Channel 1.1
HD Audio HDMI CEC I2S MHL-CBUS
MIDI MIPI_CSI-2 PCM PSB Interface
S/PDIF STBus

Basic Logic Application

ARITHMETICAL LOGIC DIGITAL LOGIC JK FLIP-FLOP UP DOWN COUNTER


Memory

Compact Flash 4.1 I2C(EEPROM 24L) I2C(EEPROM 24LCS61/24LCS62) MICROWIRE(EEPROM 93C)
SPI Compatible(Atmel Memory) Quad SPI SAMSUNG K9(NAND Flash) SD2.0/SDIO
UNI/O

Optoelectronics

7-SEGMENT LED CCIR656 CMOS IMAGE LCD12864
DALI Interface DM114/DM115 DMX512 LCD1602
LED Pitch Array LG4572 RGB Interface S2Cwire/AS2Cwire
SCCB

Infrared rays

IRDA NEC PD6122 Philips RC-5 Philips RC-6
PT2262/PT2272

Power

BMS HDQ PMBus 1.1 QI
SDQ SMBus 2.0

Wireless

Differential Manchester DigRF ISO7816 UART KEELOQ Code Hopping
MANCHESTER MII SIGNIA 6210 MILLER
MIL-STD-1553 MODIFIED MILLER WIEGAND WWV/WWVH/WWVB


Other

DS1302 DS18B20 Line Code HART
KNX ModBus MODIFIED SPI OPENTHERM 2.2
PROFIBUS SHT11 YK-5
