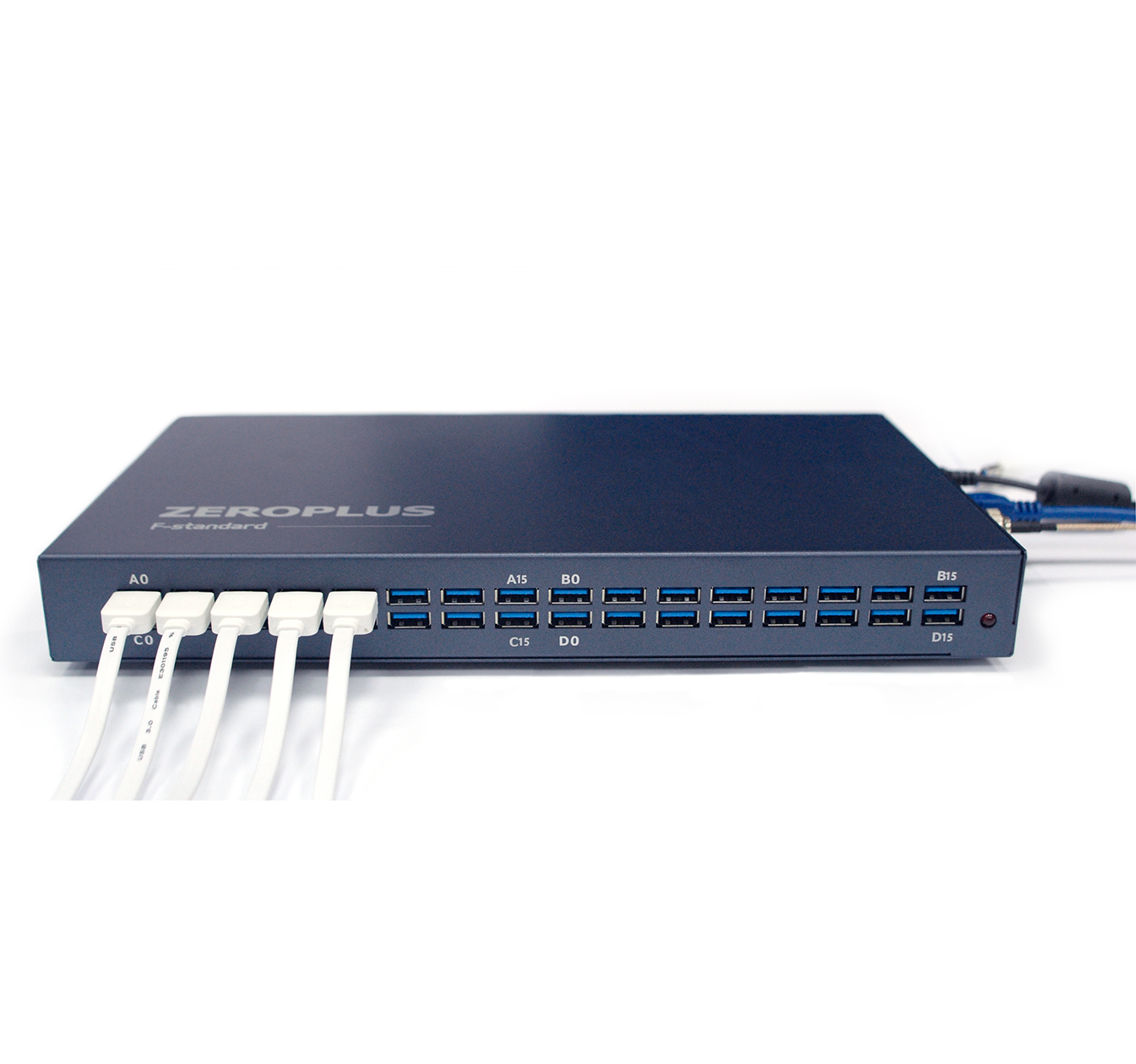

LAP-F1-64




User Manual     Software

General
Free
Protocols -

1-WIRE, CAN 2.0B, IRDA, 3-WIRE, JTAG 2.0, PS/2, I2C (EEPROM 24LCS61/24LCS62), SSI Interface, MANCHESTER, MILLER, SPI Compatible (Atmel Memory), I2C, UART (RS-232C/422/485), SPI, 7-SEGMENT LED, USB 1.1, LCD1602, DIGITAL LOGIC, ARITHMETICAL LOGIC, MICROWIRE, I2C (EEPROM 24L), UP DOWN COUNTER, MICROWIRE (EEPROM 93C), MCU-51 DECODE, General Free Protocols
N/A - USB 2.0

» Inquiry «



Specifications
Sampling rate
  .Internal (Timing)(Asynchronous) Max. 1 GHz
.External (State)(Synchronous) Max. 200 MHz (Dual-edge)

Active probes / Signals
  P100ST (Optional)
.DUT Bandwidth (Max.):100 MHz
.Channels (Max.):Data 64 ch
.Signal Type:Single-Ended Bus
.Input Impedance / Capacitance:530 Kohm ± 10% / 8.2 pF ±2 pF
.Bus Voltage: VIH:2V-5V
.Input DC Voltage (Max.): ± 5V

P120LV (in base purchase)
.DUT Bandwidth (Max.):120 MHz
.Channels (Max.):Data 64 ch
.Signal Type:Single-Ended Bus
.Input Impedance / Capacitance:190 Kohm ± 10% / 4.3 pF ±2 pF
.Bus Voltage: VIH:0.6V-5V
.Input DC Voltage (Max.): ± 10V

P120NE (Optional)
.DUT Bandwidth (Max.):120 MHz
.Channels (Max.):Data 64 ch
.Signal Type:Single-Ended Bus
.Input Impedance / Capacitance:190 Kohm ± 10% / 4.3 pF ±2 pF
.Bus Voltage: VIH:0.3V-5V or VIH:-0.2V--1.5V
.Input DC Voltage (Max.): ± 10V

P200EM (4 probes and 1 CLK probe included in base purchase)
.DUT Bandwidth (Max.):200 MHz
.Channels (Max.):Data 32 ch
.Signal Type:Single-Ended Bus
.Input Impedance / Capacitance:190 Kohm ± 10% / 4.3 pF ±2 pF
.Bus Voltage: VIH:0.6V-5V
.Input DC Voltage (Max.): ± 10V

Memory
  Memory depth per channel: 4Mb, 8Mb, 16Mb, 32Mb or 64Mb

Trigger
  .6 protocol triggers (hardware)(serial): I2C, I2S, SPI, SVID, UART (RS-232C/422/485), CAN 2.0B
.Trigger types: Pattern/Edge/Pulse Width/Interval (Time)
.Trigger channels: 64
.Trigger delay: Yes
.Trigger levels: 256
.Trigger pass: 1-65535

Operating system
  Windows 8.1 is recommended

Data transmission
  USB 3.0 (compatible with 2.0)

Special software features
  .Zooming and panning
.Waveform and UI Customization
.State list and Waveform view
.Packet list
.Waveform Navigator
.Memory view
.Statistic
.File Comparison

Phase error
  < 3 ns

Power supply
  AC (IN): 100~240V, 50~60Hz
DC (OUT): 9V/5.55A

Certifications
  FCC / CE
