General Free Protocols -	1-WIRE、CAN 2.0B、IRDA、3-WIRE、JTAG 2.0、PS/2、I2C(EEPROM 24LCS61/24LCS62)、SSI Interface、MANCHESTER、MILLER、SPI Compatible(Atmel Memory)、I2C、UART(RS-232C/422/485)、SPI、7-SEGMENT LED、USB 1.1、LCD1602、DIGITAL LOGIC、ARITHMETICAL LOGIC、MICROWIRE、I2C(EEPROM 24L)、UP DOWN COUNTER、MICROWIRE(EEPROM 93C)、LIN 2.1、LED Pitch Array、General Free Protocols
N/A -	MCU-51 DECODE、PCI、Compact Flash 4.1、USB 2.0、RGB Interface、SD3.0、eMMC

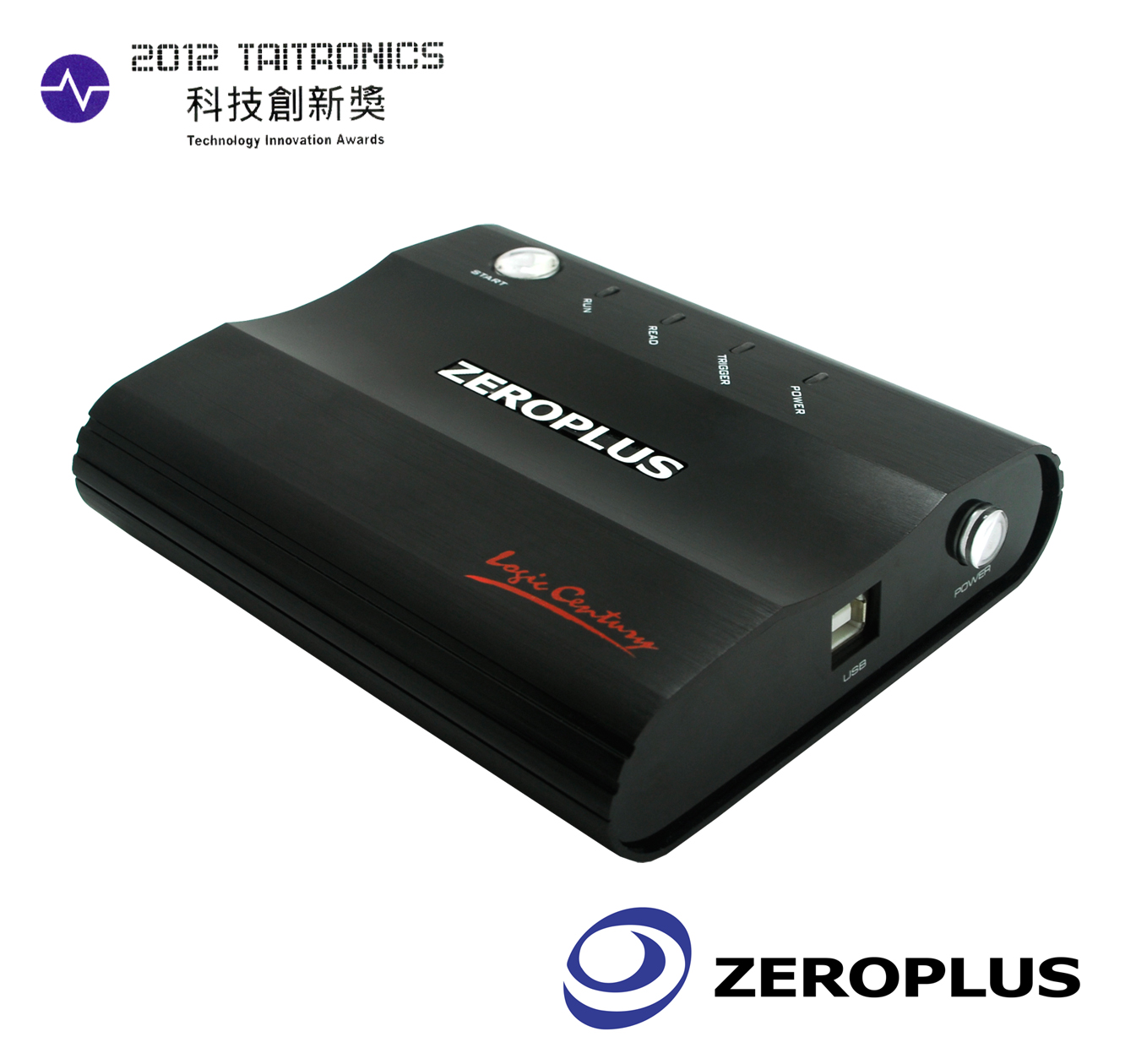

Specifications

	Double Mode
	Channels:16 channels RAM Sizes: 256K

	Extending Channel Capture
	Not support

	Other
	Power ：USB (DC 5V, 500mA) Operating System： Windows 2000 / XP(32bits) / Vista / Win 7 Phase Errors： < 1.5ns Maximum Input Voltage： ±30V Impedance：500KΩ/10pF Safety Certification： FCC / CE

	Software Functions
	Data Compression : Max 128K bits x 256 Time Base Range : 5ps~10Ms Language : Chinese (Traditional/Simplified) English Maximum Trigger Page : 8192 Pages Trigger Mark Waveforrm Data Display Filter&Filter Delay Trigger Delay Unlimited lncreasing Bar Automatic Attaching Bar Automatic Software Upgrade Data Statistic Auto-Save Filter Bar Protocol Analysis File Export Data Contrast Latch Function Protocol Analyzer Trigger : parallel/serial Pulse Width Trigger Module : option

	Trigger
	Condition： Pattern/Edge Trigger Channel ： 16 CH Post Trigger： YES Trigger Level： 1 Level Trigger Count： 1~65535

	Memory
	Memory：4Mbits Depth(Per Channel)：128Kbits (Max 32Mbits for compression)

	Threshold Voltages
	Bandwidth：75MHz Working Range： -6V~+6V Accuracy： ±0.1V

	Sample Rate
	Internal Clock (Timing Mode) 100Hz~200MHz External Clock (State Mode) 100MHz

Electric Specification
