Arduino starter kit with Logic Analyzer




User Manual

Inquiry



Specifications
Experiment Guide

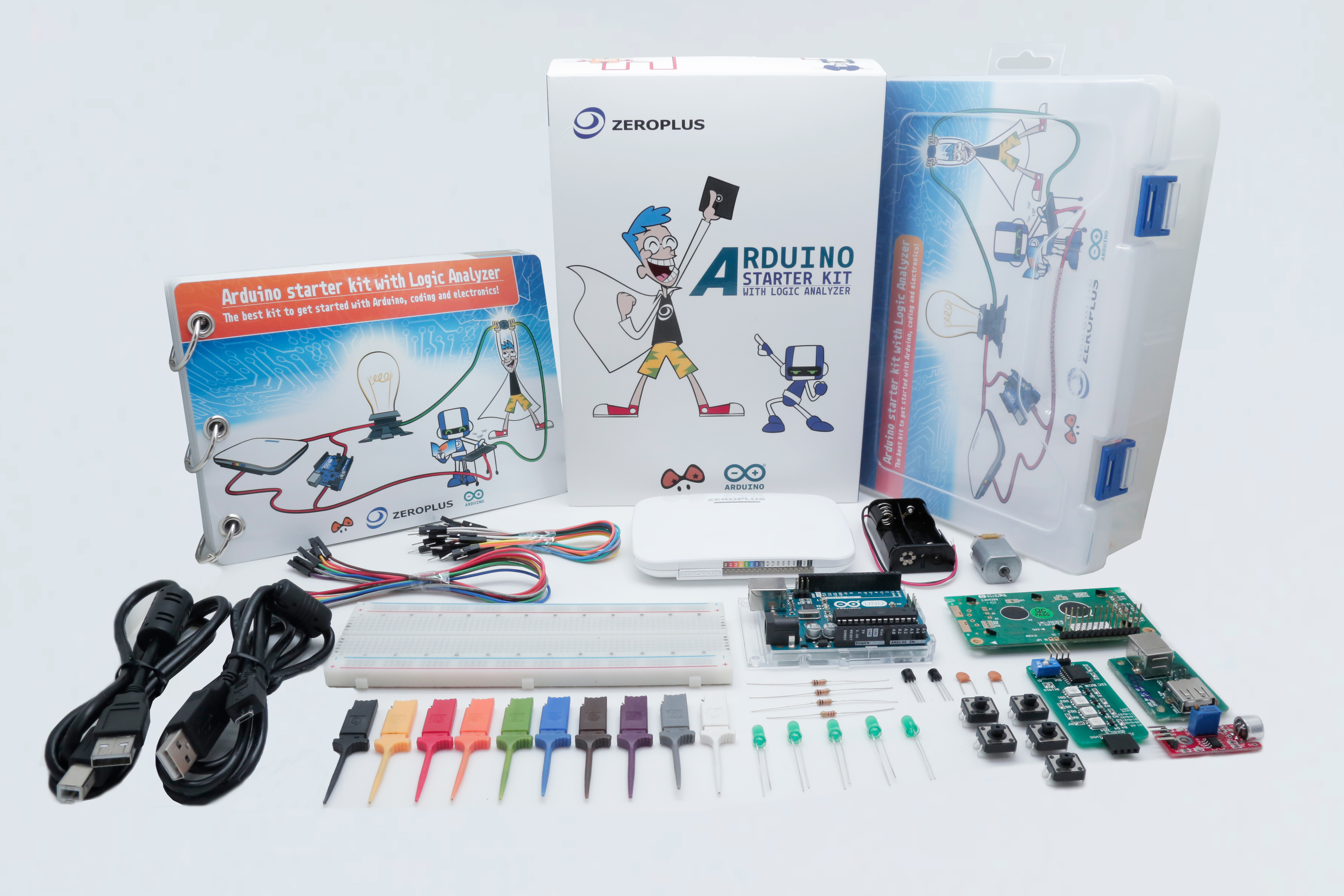

COMPONENTS
  1 x 3V DC Motor 5 x LED 1 x Photoresistor 2 x 104 μF Capacitor 1 x BC337 NPN Transistor 1 x LM335 Temperature Sensor 4 x Push-button 1 x 10kΩ Potentiometer 1 x 1N4148 Diode 4 x 10kΩ Resistor 2 x 2.2kΩ Resistor 4 x 330Ω Resistor

1 x Breadboard


20 x Male to male jumpers
  Breadboard to Arduino connections

10 x Female to female jumpers
  Provided with the LAP Educator

1 x USB A-B Cable
  For the LAP Educator

1 x USB A-B Cable
  For the Arduino UNO

1 x 2xAA Battery Holder
  It provides additional power to the motor

10 x Test hook
  Use them to connect to flying leads

1 x Sound Sensor
  Detects the sound strength

1 x USB Bridge
  Converts type-A to type-B USB

1 x I2C RGB LED
  I2C-controlled LEDs

1 x LCD1602 LCD
  Display module

1 x Arduino UNO rev3
  ATmega328P-based microcontroller board

LAP Educator
  1 x LAP Educator
