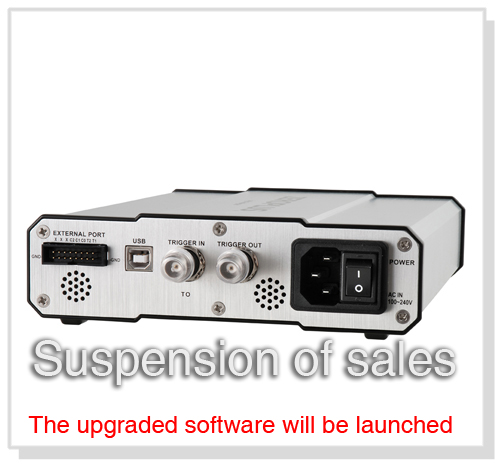

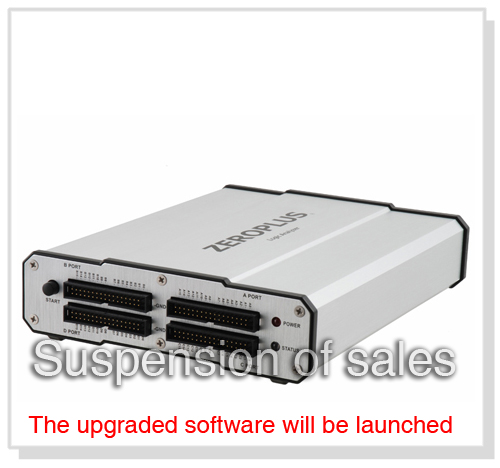

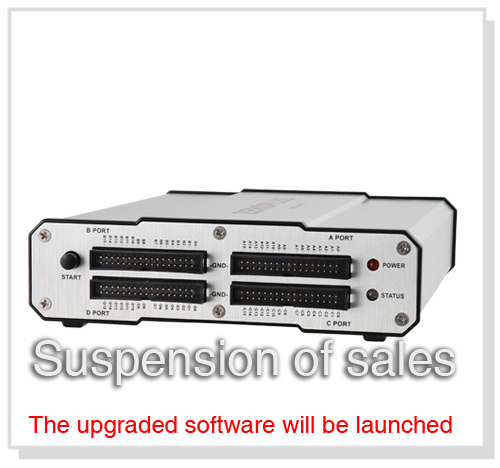

Sampling Rate |
| |
Internal Clock (Timing)(Asynchronous):100Hz~250MHz/100MHz~500MHz/200MHz~1GHz
External Clock(State)( Synchronous): Max150MHz/ N/A / N/A |
| |
|
|
Test Signal |
| |
Bandwidth: 150MHz
Working Range of Trigger Voltage: -6V~+6V
Resolution of Trigger Voltage: 0.1V |
| |
|
|
Memory |
| |
Memory Size: 140Mbits
Memory Depth(Per Channel): 2Mbits/4Mbits/8Mbits |
| |
|
|
Trigger |
| |
Trigger Mode/Condition: Pattern/Edge/Pulse Width/AND/OR
Trigger Channel: 64CH/32CH/16CH
Trigger Delay: N/A
Trigger Level: 16 Levels
Trigger Count: 1~65535 |
| |
|
|
Operating System |
| |
Windows 2000 / XP / Vista / Win 7 |
| |
|
|
Transmission Interface |
| |
USB2.0(1.1) |
| |
|
|
Software Functions |
| |
Operating Interrface Language: Chinese (Simplified/Traditional)/English
Time Base Range: 5ps~10Ms
Vertical Sizing: 1~5.5
Compression of Waveform Data: Max. 1Mbits x 4G
Max. Trigger Page of Waveform: 8192 Pages
Filter and Filter Delay: YES
Waveform Width Display: YES
Trigger Delay of Waveform: YES
Add Bar: YES Automatic Zoom In of Spacer Bar: YES
Automatic Software Upgrade: YES
Select an Analytic Range: YES
Data Statistics: YES
Auto Save: YES
Filter Bar: YES
Protocol Analyzer: YES
Data Contrast: YES
Latch Function: YES
Bus Packet List: YES
Export Packet List: YES
Protocol Packet Trigger: YES |
| |
|
|
Error in Phase |
| |
< 1.5ns |
| |
|
|
Power |
| |
AC100~240V, 50~60Hz |
| |
|
|
Maximum Input Voltage |
| |
±30V |
| |
|
|
Input Resistance |
| |
500KΩ / 10pF |
| |
|
|
Safety Certification |
| |
FCC / CE |
| |
|
|
Product Dimension |
| |
250mm * 170mm * 47mm |
| |
|
|
Firmware On-line Upgrade |
| |
YES |
| |
|
Logic Analyzer
