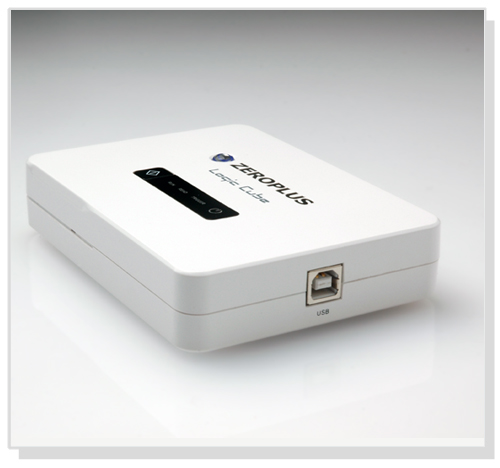

Sample Rate |
| |
Internal Clock (Timing Mode) 100Hz~200MHz
External Clock (State Mode) 100MHz
|
| |
|
|
Threshold Voltages |
| |
Bandwidth：75MHz(-3dB)
Working Range： -6V~+6V
Accuracy： ±0.1V
|
| |
|
|
Memory |
| |
Memory ：64Mbits
Depth(Per Channel) ：2Mbits (Max 512Mbits for compression)
|
| |
|
|
Trigger |
| |
Condition： Pattern/Edge
Trigger Channel ： 32 CH
Post Trigger： YES
Trigger Level： 1 Level
Trigger Count： 1~65535
|
| |
|
|
Software Functions |
| |
Data Compression : Max 512Mbits, Available 24CH
Time Base Range : 5ps~10Ms
Language : Chinese (Traditional/Simplified) English
Maximum Trigger Page : 8192 Pages
Waveforrm Data Display
Filter&Filter Delay
Trigger Delay
Unlimited lncreasing Bar
Automatic Attaching Bar
Automatic Software Upgrade
Data Statistic
Auto-Save
Filter Bar
Protocol Analysis
Protocol Packet List
File Export
Data Contrast
Latch Function
Protocol Packet Trigger : parallel, serial
Pulse Width Trigger Module : free
|
| |
|
|
Other |
| |
Power ：USB (DC 5V, 500mA)
Operating System： Windows 2000 / XP / Vista / Win 7
Phase Errors： < 1.5ns
Maximum Input Voltage： ±30V
Impedance：500KΩ/10pF
Safety Certification： FCC / CE / WEEE / RoHS / SVHC
|
| |
|
|
Extending Channel Capture |
| |
Channel mode: LAP-C(322000) + LAP-C(322000) => Channel = 62CH, Memory = 2Mbits
Memory mode: LAP-C(32128) + LAP-C(32128) => Channel = 31CH, Memory = 256Kbits
|
| |
|
|
Double Mode |
| |
Channels:16 channels
RAM Sizes:4M
|
| |
|
Logic Analyzer
