Products
	>> Products	Home / Products /

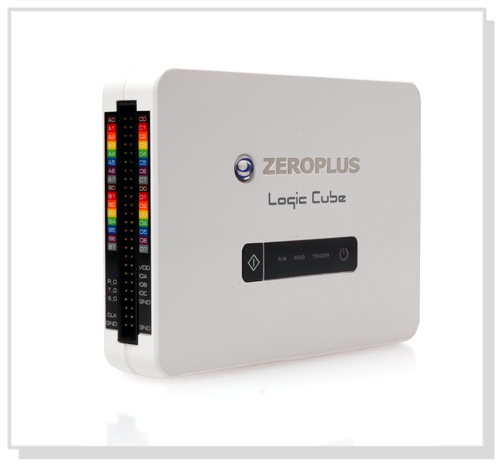

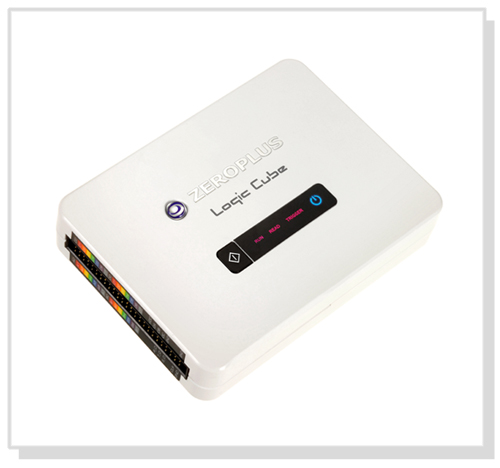

Logic Analyzers   System Stability Analyzer   Protocol Analyzers   Arduino starter kit with Logic Analyzer   Protocol Decoding species (free)   I2C-SPI Control Center   Accessories   Optional Software   Discontinued product   Rewards and Certifications	LAP-C(322000) (video - Logic Analyzer_basic setting) ．Internal Clock (Timing Mode)：100Hz～200MHz ．Memory：64Mbits ．Memory Depth(Per Channel)：2Mbits ．Trigger Channel：32CH ．PC-Based interface ．Power：USB 1.1(2.0) ．Protocol Packet Trigger : parallel, serial ．Pulse Width Trigger Module : free LAP-C(32128) (video - Logic Analyzer_basic setting) ．Internal Clock (Timing Mode)：100Hz～200MHz ．Memory：4Mbits ．Memory Depth(Per Channel)：128Kbits ．Trigger Channel：32CH ．PC-Based Interface ．Power：USB 1.1(2.0) LAP-C(16128) (video - Logic Analyzer_basic setting) ．Internal Clock (Timing Mode)：100Hz～200MHz ．Memory：4Mbits ．Memory Depth(Per Channel)：128Kbits ．Trigger Channel：16CH ．PC-Based Interface ．Power：USB 1.1(2.0) LAP-C(16064) (video - Logic Analyzer_basic setting) ．Internal Clock (Timing Mode)：100Hz～200MHz ．Memory：1Mbits ．Memory Depth(Per Channel)：64Kbits ．Trigger Channel：16CH ．PC-Based Interface ．Power：USB 1.1(2.0) LAP-C(16032) (video - Logic Analyzer_basic setting) ．Internal Clock (Timing Mode)：100Hz～200MHz ．Memory：512Kbits ．Memory Depth(Per Channel)：32Kbits ．Trigger Channel：16CH ．PC-Based Interface ．Power：USB 1.1(2.0) LAP-C(162000) (video - Logic Analyzer_basic setting) ．Internal Sampling Frequency: 100Hz～200MHz ．RAM Size: 64Mbits ．Memory Depth per Channel: 2Mbits ．Trigger Channel: 16CH ．PC-Based Interface ．Use USB1.1 (2.0) to supply power         LAP-16128U Suspension of sales . The upgraded software will still be launched Sample Rate: 100Hz~200MHz Memory Depth: 128Kbits Trigger Channel: 16CH Data Compression: Max. 32Mbits       Automotive ‧CAN 2.0B ‧DSI Bus ‧FlexRay 2.1A ‧LIN 2.1 ‧MVB ‧WTB     PC System ‧AMD_SVI2 ‧DDC EDID ‧GPIB ‧FWH ‧IDE ‧Low Pin Count ‧LPC-SERIRQ ‧LPT ‧PCI ‧PECI ‧PS/2 ‧Serial GPIO IBPI ‧SVID ‧USB 1.1 ‧USB 2.0   IC Interface ‧BDM ‧HPI ‧eSPI ‧1-WIRE ‧JTAG 2.0 ‧MCU-51 DECODE ‧3-WIRE ‧I2C ‧MDDI ‧I3C ‧MICROWIRE ‧MIPI DSI ‧SPI ‧SLE4442 ‧SSI Interface ‧SPI PLUS ‧ST7669 ‧UART(RS-232C/422/485) ‧1-Wire(Advanced) ‧Serial Wire Debug(SWD)         Digital Audio ‧AC97 ‧AES_EBU ‧DSA Interface ‧DP AUX Channel 1.1 ‧HD Audio ‧HDMI CEC ‧I2S ‧MHL-CBUS ‧MIDI ‧MIPI_CSI-2 ‧PCM ‧PSB Interface ‧S/PDIF ‧STBus     Basic Logic Application ‧ARITHMETICAL LOGIC ‧DIGITAL LOGIC ‧JK FLIP-FLOP ‧UP DOWN COUNTER         Memory ‧Compact Flash 4.1 ‧eMMC ‧I2C(EEPROM 24L) ‧I2C(EEPROM 24LCS61/24LCS62) ‧MICROWIRE(EEPROM 93C) ‧SPI Compatible(Atmel Memory) ‧Quad SPI ‧SAMSUNG K9(NAND Flash) ‧SD2.0/SDIO ‧SD3.0 ‧UNI/O   Optoelectronics ‧7-SEGMENT LED ‧CCIR656 ‧CMOS IMAGE ‧LCD12864 ‧DALI Interface ‧DM114/DM115 ‧DMX512 ‧LCD1602 ‧LED Pitch Array ‧LG4572 ‧RGB Interface ‧S2Cwire/AS2Cwire ‧SCCB       Infrared rays ‧IRDA ‧MIPI RFFE ‧NEC PD6122 ‧Philips RC-5 ‧Philips RC-6 ‧PT2262/PT2272     Power ‧BMS ‧HDQ ‧PMBus 1.1 ‧QI ‧SMBus 2.0       Wireless ‧Differential Manchester ‧DigRF ‧ISO7816 UART ‧KEELOQ Code Hopping ‧MANCHESTER ‧MII ‧SIGNIA 6210 ‧MILLER ‧MIL-STD-1553 ‧MODIFIED MILLER ‧SWP ‧WIEGAND ‧WWV/WWVH/WWVB       Other ‧DS1302 ‧DS18B20 ‧IO-Link ‧Line Code ‧HART ‧KNX ‧ModBus ‧MODIFIED SPI ‧OPENTHERM 2.2 ‧PROFIBUS ‧SHT11 ‧YK-5
