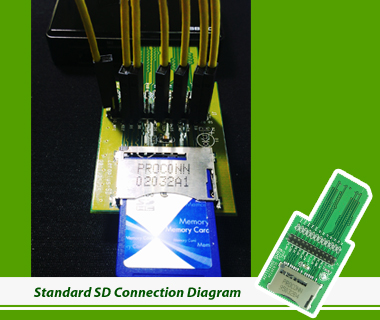

You can use it to get the best measurement result and save your time. |  | Standard SD Connect Board | - Specially design for support SD signal measurement.
- Support SD card Spec V2.0
Advantage of application : - Saving your resource (time & cost) for the development of the transfer board required.
- Easy probe &capture SD card signal with Logic Analyzer.
- Reduce the depletion of memory card read/write area (It's caused by repeated plugging card action.)
- Compatible with the appearance of currently available SD card modeling.
- Avoid the abnormal signal caused by hand solder of test line.
| | | | |
| |

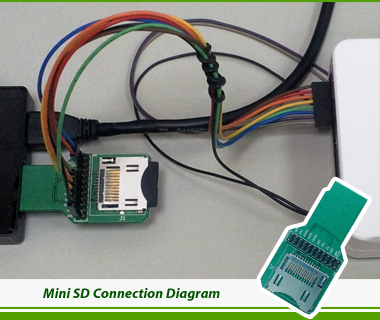

 | Mini SD Connect Board | - Specially design for support Mini SD signal measurement.
- Support SD card Spec V1.1
Advantage of application : - Saving your resource (time & cost) for the development of the transfer board required.
- Easy probe &capture MiniSD card signal with Logic Analyzer.
- Reduce the depletion of memory card read/write area (It's caused by repeated plugging card action.)
- Compatible with the appearance of currently available MiniSD card modeling.
- Avoid the abnormal signal caused by hand solder of test line.
| | | | | | |

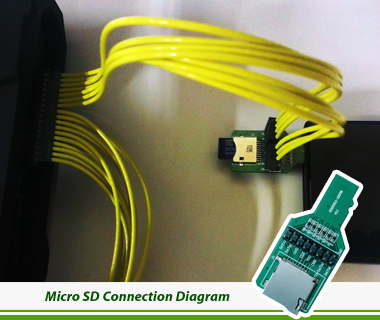

 | Micro SD Connect Board | - Specially design for support MICRO SD signal measurement.
- Support SD card Spec V1.1
Advantage of application : - Saving your resource (time & cost) for the development of the transfer board required.
- Easy probe &capture Micro SD signal with Logic Analyzer.
- Reduce the depletion of memory card read/write area (It's caused by repeated plugging card action.)
- Compatible with the appearance of currently available Micro SD card modeling. 5. Avoid the abnormal signal caused by hand solder of test line.
| | | | | | |
 | USB Bridge Connect Board | - Specially design for support USB signal measurement.
- Support USB Spec V1.1.
Advantage of application : - Saving your resource (time & cost) for the development of transfer board required.
- Easy probe & capture USB signal with Logic Analyzer.
- Avoid the abnormal signal caused by hand solder of test line.
| | | | | | |
